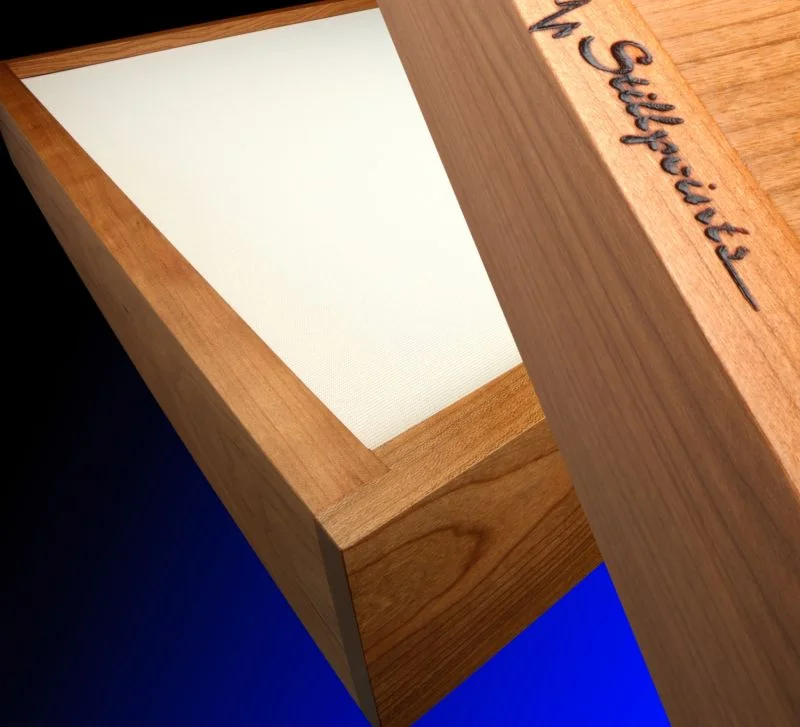

Stillpoints Aperture

Stillpoints Aperture

Aperture

 An absorber, a diffuser, a resonator.

The Stillpoints Aperture is a patent-pending design blending three essential elements of sound contouring; an absorber, a diffusor, and a resonator, all in one product.

Dimensions: 22" high x 22" wide x 3 1/8" deep

Weight (depending on woods): 14lbs to 16lbs each











 Stillpoints Ultra 5

Stillpoints Ultra 5

Ultra 5

The best Stillpoint for floor standing loudspeakers.

Dimensions:

Height: 1.84"

Diameter: Minimum 1.74" to Maximum 2.97!

Weight (per unit):  3 lbs

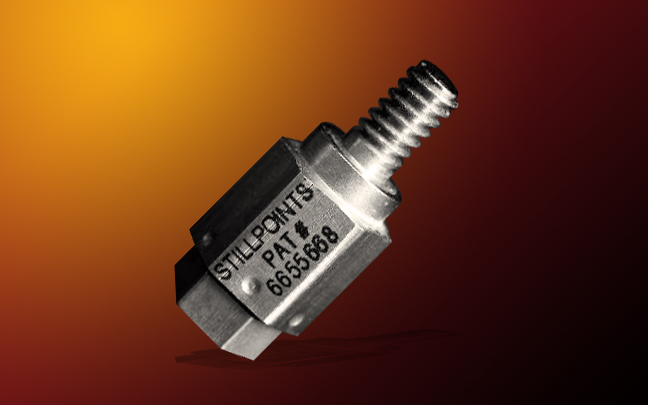

 Stillpoints OEM Stand Off

Stillpoints OEM Stand Off

OEM Stand Off

 Stillpoints Isolating Stand Offs are made in several sizes.

Sold singularly.  Made of Stainless Steel.

#10023 6-32 Female/6-32 Female 0.6875/17.462 5mm

#10041 6-32 Female/6-32 Male 0.50"/12.70 mm

#10057 6-32 Male/6-32 Male 0.41%/10.31 mm

#10069 8-32 Female/8-32 Famale 0.648" /16.279mm

#10072 M4 Male/M4 Male 0.389"/9.9219 mm

#10085 8-32 Male/8-32 Female 0.588"/14.6844 mm



 Stillpoints ERS Material

Stillpoints ERS Material

ERS

 The ERS ( EMI- RFI Suppression) material redirects, absorbs, and diffuses EMI/RFI frequencies.

The benefits of ERS for audio/video are best heard with digital circuits due to the RFI creating aspect of the circuitry itself. Benefits of ERS can also be heard with AC power lines, signal cables, loudspeakers and electronics of all types.

EMI/RFI materials have been around for a long time. Most of them are heavy and hard to apply. Many need to be grounded to be effective. None of them are as light weight or easy to deploy as ERS, where grounding is not necessary.





What is it made of?
The core of ERS is made of a blend of carbon fibres of various lengths and sizes. Using a proprietary method, these fibres are coated with metals, such as nickel. The exterior is laminated with a polyester textile on both sides to make the material easier to handle and use.

ERS may be purchased with a Pressure Sensitive Adhesive (PSA) already applied for easy and quick installation. THis PSA is repositionable within a few hours and then becomes permanent. However, saturation of the material with GOOGONE will allow for easy scraping and removal.

The edges of ERS does have exposed conductive fibres and should be handled and installed with care. The electrical resistance of ERS is .026 ohms per square yard.

The polyester fabric will insulate the core of ERS, to some degree, but can easily be penetrated with sharp edges. Caution should be exercised when used in close proximity to circuitry.

ERS is treated to accept many laminating resins such as epoxy and polyester resins.

Available in several sizes of rolled materials.  Widths range from 1/4" to 35.5", at any length, on 3" cores with or without pressure-sensitive adhesive.  Stock length is 50 linear yard rolls at 1/4", 1/2", 1", 2", 4", 6", and 11" widths.

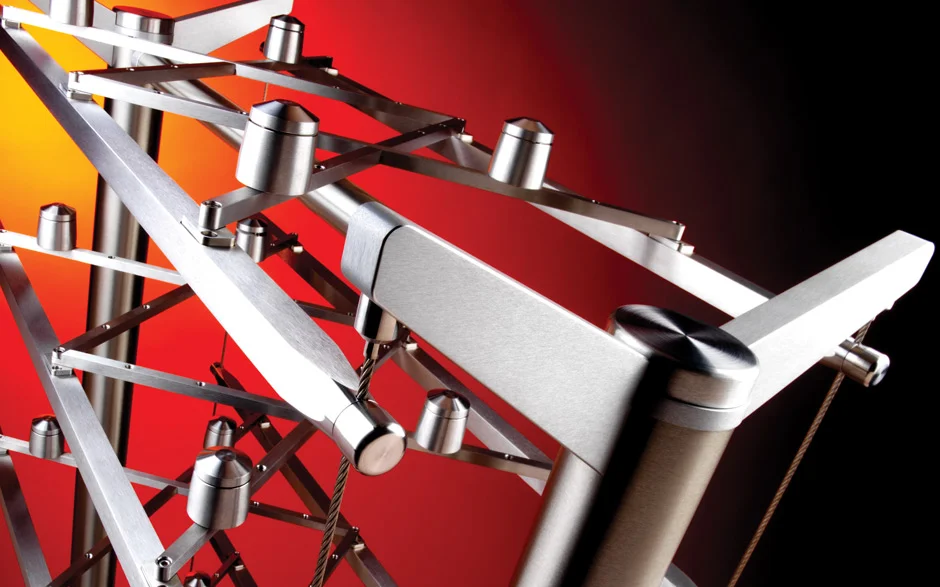

 Stillpoints ESS Rack

Stillpoints ESS Rack

ESS Rack

 Stillpoints technology to the fullest, richest, most spectacular.

 The ESS rack was designed to be an effective vibration isolating structure that looked appealing but did not overwhelm the look of what was placed on it. In fact, the original inspiration for the design was a display rack assembly to which Stillpoints engineered its technology. The result is an open design that allows for ultimate ventilation, low mass for low energy storage, yet high strength for tremendous load carrying capacity.

The current day ESS support bars were designed in the spring of 2007 to carry the weight of turntables that exceeded 200 lbs. The 20” and 26” wide ESS can easily carry a load of 225 lbs for decades to come. The 40” wide ESS with a doubled support bar system can carry a load of over 450 bs per shelf assembly. Each cable of every ESS rack has a breaking strength of 2000 lbs.

The ESS models start with an acrylic shelf system that is attached to the support bars. Every support bar has three pockets of Stillpoints technology making each shelf level the equivalent of 6 Ultra SS per shelf. The next level of ESS performance comes when the acrylic is replaced by the Grid system. The Grid system is an ingenious system utilizing one machined part designed to interweave into the double X pattern The Grid system allows for placing any level of Stillpoint technology, or any combination of Hard Hats, Ultra Mini’s, Ultra SS’s, Ultra 5’s and Ultra 6’s to be interfaced between the component and the Support Bar system.

The Ultra 6 was specifically designed for the ESS. Its low profile maximizes the isolation capabilities with opposing technology pockets while allowing for taller components in a given shelf configuration. The increase in micro dynamics, low level detail retrieval, sound stage width and depth, and overall emotional transfer is very compelling as witnessed in room 1406 at THE SHOW in
Newport Beach 2015.

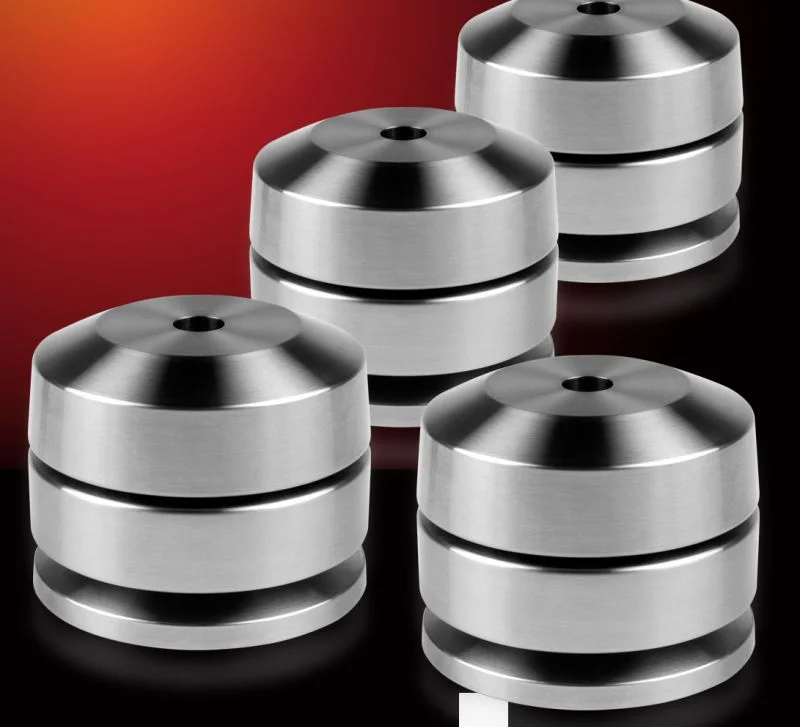

 Stillpoints Ultra SS

Stillpoints Ultra SS

Ultra SS

The first in the line of Ultra filters. Wonderful all-around performer, under electronics, attached to loudspeakers.

Dimensions:

Height - MInimum 1.49" to Maximum 1.68"

Diameter: Minimum 1.27" to Maximum 1.38"

Weight (per unit):  7.84 oz.

Available individually, in sets of 3 and in sets of 4.



 Stillpoints OEM Flush Mount Ultra SS

Stillpoints OEM Flush Mount Ultra SS

OEM Flush Mount Ultra SS

This OEM Flush Mount Ultra SS was designed for manufacturers to use a the base of loudspeakers or in between multiple speaker cabinets.

Dimensions:

Thread size:  ¼-20

Made of Stainless Steel.

Available individually, in sets of 3 and in sets of 4.

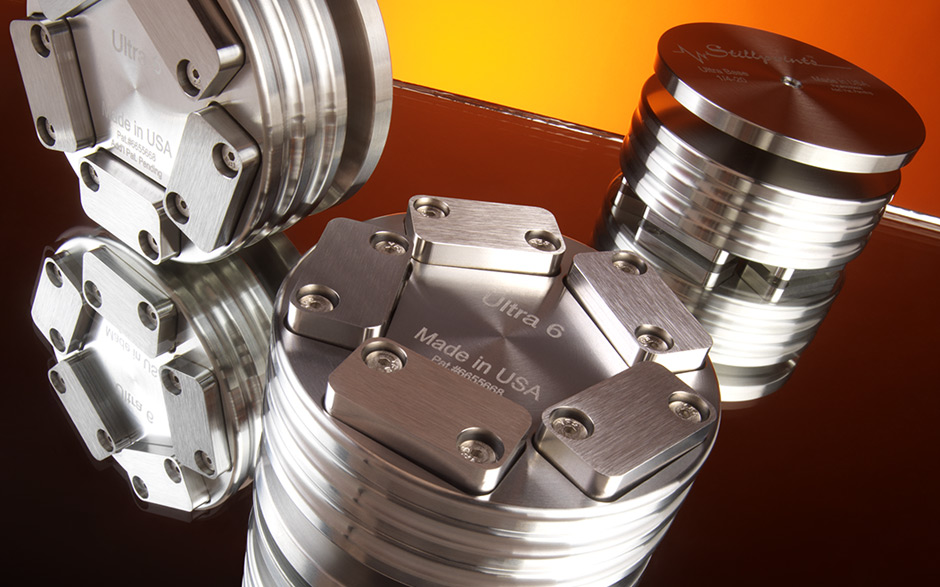

 Stillpoints Ultra 6

Stillpoints Ultra 6

Ultra 6

The Ultra 6 is the best Stillpoint to date for electronics.

Dimensions:

Height:  Minimum 1.60" to Maximum 1.92"

Diameter: Minimum 2.97" to Maximum 2.97"

Weight (per unit):  1 lb 10 oz.



 Stillpoints Ultra Mini

Stillpoints Ultra Mini

Ultra Mini

Our entry level Ultra filter. All of the technology, just reduced to the smallest package.

Dimensions:

Height:  Minimum 1.16" to Maximum 1.34"

Diameter:  Minimum 0.74" to Maximum 0.95"

Weight (per unit):  2.24 oz.

Available individually, in sets of 3 and in sets of 4.  See dealer for details.





For more information, please visit:  www.stillpoints.us
